arduino multiple spi,Arduino has a built-in SPI library and hardware to communicate with SPI devices. In this circuit, we will connect 2 SPI devices to an arduino microcontroller. We will show how this is actually hardwared together. .Answer. You can connect not only two SPI devices but also three or more SPI devices to Arduino. If you takes a look to SPI reference, you will know that SPI requires four pins: . 1 Answer. Sorted by: 24. Assuming you just want to connect two SPI slave devices to the SPI bus and use them in a mutually exclusive way under software control, .Arduino & Serial Peripheral Interface (SPI) Serial Peripheral Interface (SPI) is a synchronous serial data protocol used by microcontrollers for communicating with one or . SPI is a type of synchronous serial communication, which means that data transfer is timed with clock pulses. SPI communication isn’t good for transmitting data over long distances. It should only be used for . spi. Share. Improve this question. Follow. edited Apr 18, 2017 at 6:14. SDsolar. 1,16511135. asked Apr 17, 2017 at 14:27. Piyush Verma. 313. 1. I'd not use that .Ask Question. Asked 6 years, 4 months ago. Modified 6 years, 3 months ago. Viewed 6k times. 0. Whenever I use multiple devices on SPI, TFT Screen, and the BME280 breakout board from Adafruit, the Arduino fails .

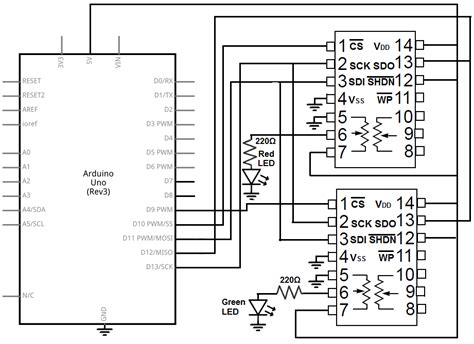

Hi there! Due to some component placements, I need to use two SPI buses on my Arduino Zero. I checked out this guide to get a sense of Muxing the serial ports to .SPI protocol features and how to integrate multiple sensors // Arduino Zero, LoRa and E-Ink modules - YouTube.The chip select pin of the second digital potentiometer is connected to digital pin 9 on the arduino, so we initalize the CS2 variable to 9. In the setup () function, we set CS1 and CS2 as output. We then call the SPI.begin () .
Multiple SPI displays should work. Separate CS pins. Separate RST pins (or RST= -1 in constructor) Multiple I2C displays should work. Separate Slave address 0x3C, 0x3D. Multiple SPI and I2C. .The SPI Library is included in every Arduino core/platform, so you do not need to install it externally. You can read more about SPI functions in the links below: . This allows you to have multiple SPI devices sharing the same CIPO, COPI, and SCK lines. To write code for a new SPI device you need to note a few things: What is the maximum SPI .
Now we set the SPI Control register (SPCR) to the binary value 01010000. In the control register each bit sets a different functionality. The eighth bit disables the SPI interrupt, the seventh bit enables the SPI, the sixth bit chooses transmission with the most significant bit going first, the fifth bit puts the Arduino in Controller mode, the fourth bit sets the data .Thank you. UKHeliBob May 12, 2021, 9:22am 2. You can have multiple SPI devices connected using common MISO, MOSI and SCK pins as long as you use different SS pins for each of them. The SS pin used determines which device is communicated with. vj01 May 12, 2021, 9:32am 3. Thank you for the reply. Using Arduino Project Guidance. I want to make 4 humidity/temperature sensors that will run on batteries. They will use the mysensors project and display the values one a Nokia 5510 screen. I will use 3.3V pro minis. For this project I will need to connect 3 SPI devices. The BME280 module, the nokia screen, and the NRF24L01+ radio. 2. First off ditch that library. It's completely pointless and actually makes things harder. Secondly connect your sensors to the SPI pins, selecting a new CS pin for each sensor. Arduino SCK (pin 13) to all the SCK pins. Arduino MISO (pin 12) to all the SO pins. Individual GPIO pins to individual CS pins (use pin 10 for one of them). Connect all pin together, but use 1 pin for each SS device. Ref: How to Connect Multiple SPI devices to an Arduino Microcontroller. Delta_G October 26, 2023, 11:55pm 3. Yes. The point of the SPI bus is that it can be shared. Each thing on the bus needs a unique slave select SS (sometimes called chip select CS) pin. Description. This library allows you to communicate with SPI devices, with the Arduino as the controller device. This library is bundled with every Arduino platform (avr, megaavr, mbed, samd, sam, arc32), so you do not need to install the library separately. To use this library. #include .#spi #lora #einkWe will learn about SPI serial communication by trying to connect 2 peripherals to the microcontroller. Both the peripherals support the SPI .
connect the MISO-output of the SD-card reader through a 4.7k resistor with the Arduino. The effect is the following: if the nrF24L01 is enabled, the nrf24L01 MISO signal is leading, regardless of the output of the SD-card MISO. The worst that can happen is a few hundred µA current through the resistor.
If you have not done this yet, download and install the BlueDot BME280 Library through the Arduino IDE. This library includes an example code with all you need to read multiple sensors on the SPI bus. Go to Sketch -> Include Library -> Manage Libraries. and search for the BlueDot BME280 Library. Now click on it and install the library. SPI protocol allows you to have multiple SPI devices sharing the same MOSI, MISO, and CLK lines of the Master. As you can observe in the above diagram, there are three slaves in which the MOSI, . I am trying to do the following SPI line: An Arduino Mega as the master of the communication. An Arduino TFT LCD screen with an SD card as slaves. An Arduino Uno as slave too. I am using the following pins: In Arduino Mega: MISO (50), MOSI (51), SCK (52) and CS's (10 for LCD, 4 for SD and 23 for Uno). In Arduino Uno: MISO (12), .SPI protocol features and how to integrate multiple Using Arduino Programming Questions. Phoedus March 7, 2023, 10:47am 1. Hi guys, I've been trying for several days to use different slaves on the same SPI bus. I'm using ESP32 devKit V2 (wrover kit) with 16MB memory. If I use slaves one by one, they work very well, but when I try to integrate them to work in the same sketch, they no .arduino multiple spi pull the display CS pin high (deactivate) run the SD.begin function (which will pull the SD chip select pin low by itself) -> SD card initialisation will fail with the SD errorCode: 0XA,0X1. The problem is that even though the SD CS pin is high, the data on the SPI MOSI bus, which is intended for the display, still somehow confuses the SD card .arduino multiple spi SPI protocol features and how to integrate multiple As of April 2, 2014, this has been fixed using DMA SPI. See reply #15 for working copy of the code. DMA SPI obtained from DUEZoo/dmaspi.ino at master
In this case you have to take care that only one of the slave select pins are LOW at any moment. system July 23, 2013, 4:16pm 3. if i write my code as for one slave. digitalWrite(10, LOW); data = highByte(outputValue); data = 0b00001111 & data; data = 0b00110000 | data; SPI.transfer(data); data = lowByte(outputValue);
